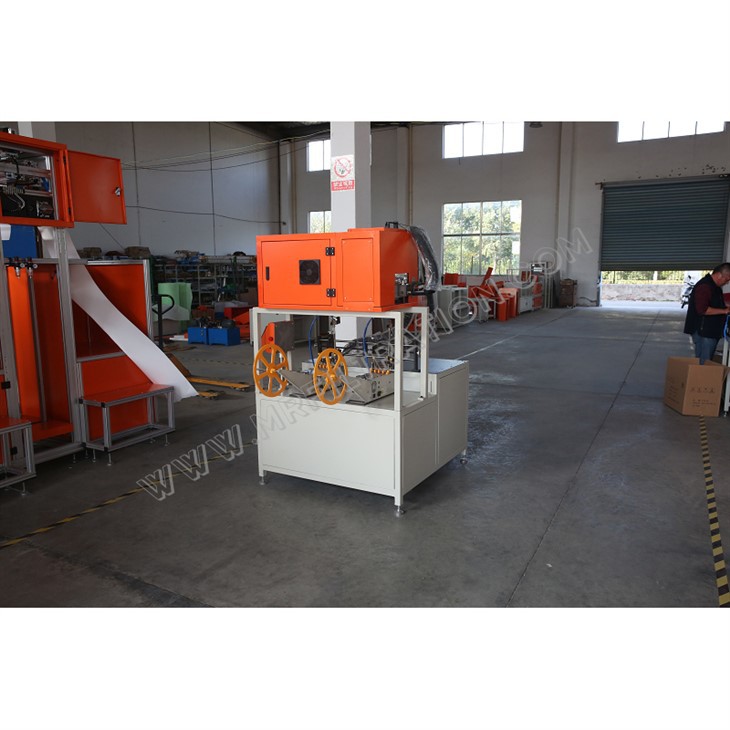

Non-woven Strips Bonding Machine
The Non-woven Strips Bonding Machine is usually used in the later stages of the Cabin Air Filter production process to bond the non-woven strips to both sides of the filter to complete the filter structure and ensure its sealing performance. This is one of the key steps in producing high-quality cabin air filters.
The Non-woven Strips Bonding Machine is mainly used for the bonding process after the cabin air filter is folded and formed. This machine will bond the non-woven strips coated with hot melt adhesive to both sides of the filter. The Non-woven Strips Bonding Machine is mainly used to cut and bond the non-woven strips on both sides of the cabin air filter. This step is very important for the overall structure and sealing of the filter.
Specifications:
|
Production Capacity |
6pcs/min |
|
Available Width |
110-280mm |
|
Available Length |
max 500 mm |
|
Power |
220V/50HZ |
|
Volumes of Hot melt Tank |
10KG |
|
Quantity of Auto Melting Gun |
2pcs |
|
Auto Gun Type |
Coating Head |
Feature:
- The height of the glue injection head is finely adjusted by the handle (with scale display).
- The glue injection width is adjusted by the handle, and the adjustment range is 10-50mm (with scale display).
- The glue injection thickness can be adjusted by the equipment speed, glue amount, and the distance of the glue head from the axis.
- The fine adjustment mechanism for lifting and lowering the side strip plate can adjust the center position of the side strip and the filter element.
- The friction tension mechanism can effectively ensure the tightness of the edge strip material disc.
- The edge strip correction mechanism can be fine-tuned to ensure that the position of the edge strip is stable in a line.
- The bonding distance between the filter element and the edge strip is adjusted by the servo motor.
- After the glue injection and bonding of the product is completed, it will pass through the cooling air curtain to quickly cool the hot melt glue.
