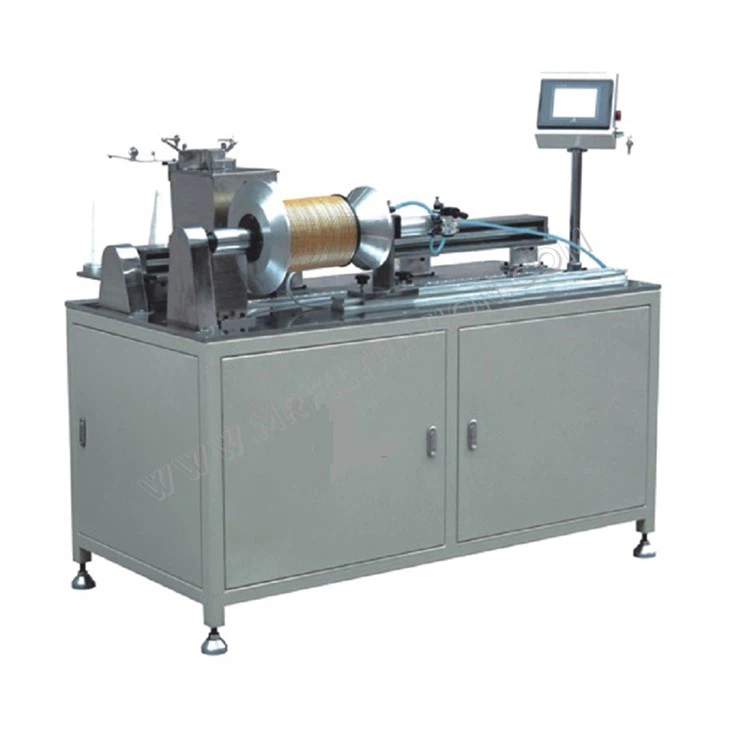

HDAF Horizontal Gluing Machine
HDAF Hotmelt Threading Machine, the hot melt threading machine in the heavy-duty air filter production line, is mainly used in the manufacturing process of air filters (especially heavy-duty air filters), especially in scenarios where the structural strength and sealing performance of the filter material need to be enhanced. HDAF Hotmelt Threading Machine achieves the enhancement and sealing of the air filter material through the steps of heating, threading and curing the hot melt, thereby improving the performance and quality of the filter.
Specification:
|
Seal speed |
40pcs/min |
|
Filter element diameter |
Ф400mm |
|
Filter element length |
1000mm |
|
Main machine power |
4.2kw |
|
Working air pressure |
0.6Mpa |
|
Power supply |
380v/50Hz |
|
Temp.control |
normal temp.~300℃ |
|
Main machine size |
1500×730×1400(L×W×H) |
Features:
- This machine is suitable for a plurality of glass fiber line, line, hot melt adhesive intertwined.
- Product spacing through computer set control, high precision.
- Winding way products: spiral and circular.
- Winding in the machine on the line is flat or round, can change the surface change by threading mouth.
